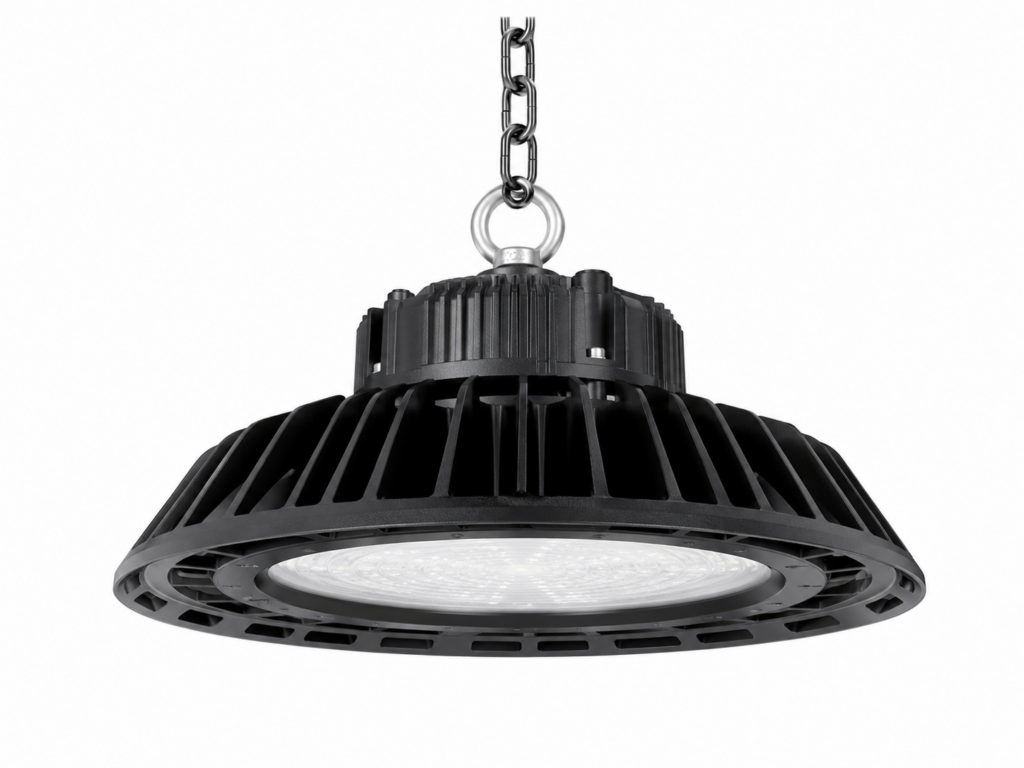

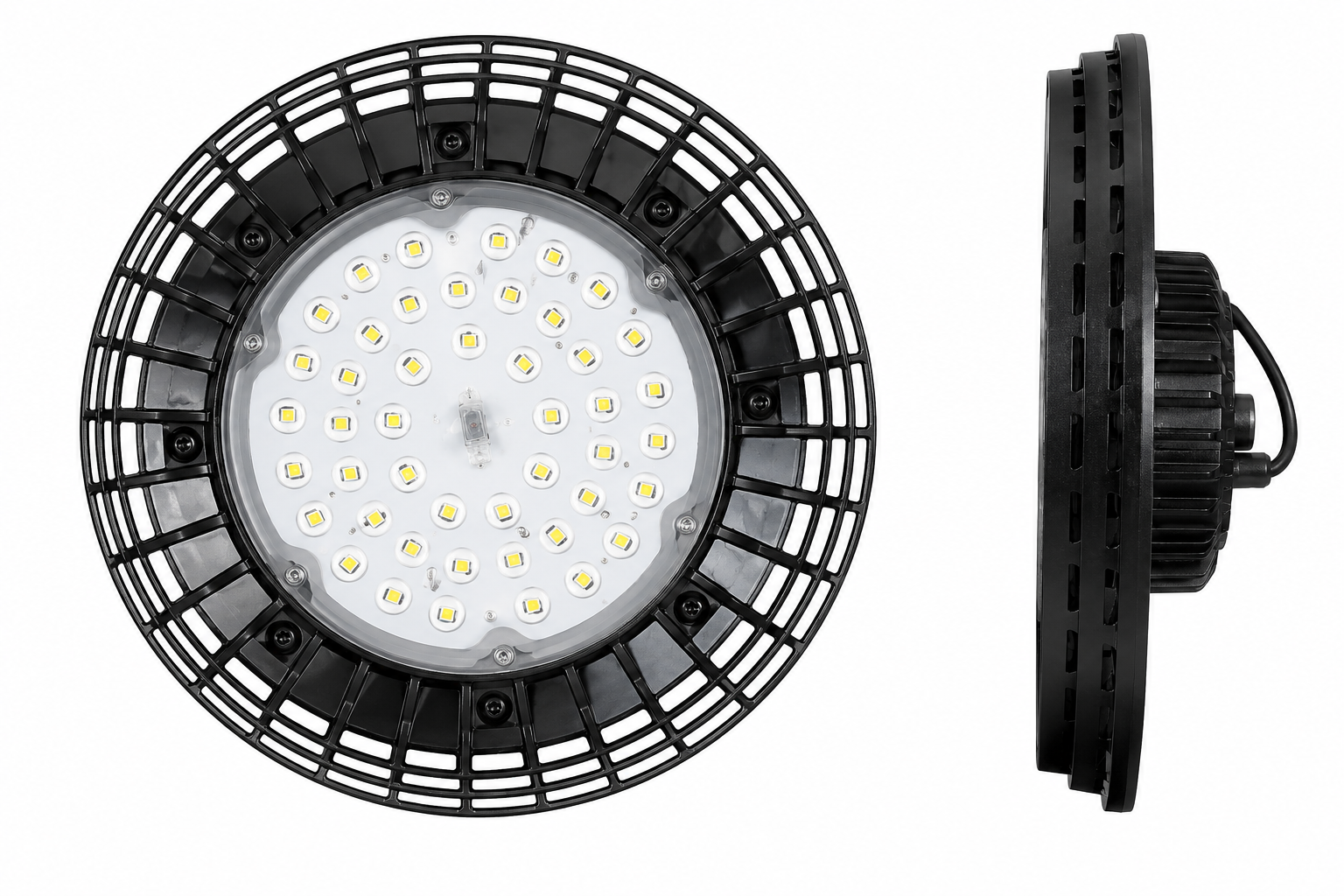

LED High bay V2
EIG HighBay V2
High bay lights are an important part of modern industrial lighting.
220-240V / 50/60Hz
50,000hrs
3/5
IP66
Product Overview
High bay lights are an important part of modern industrial
lighting. they are characterized by high durability and
tightness of IP66.
Surface Mounted
Directional Lighting
Seamless Integration
- Body Aluminum die-cast housing electrostatic painted with high efficient heat sink.
- Diffuser UV Resistant poly carbonate
- Light Source LumiLED 170Lm/w
- Driver Philips Xitanium LED Driver 94.5%
- Input Voltage Range 85 - 305 V ~ Frequency Range 50/60Hz
- Power Factor >=0.97
- Total Harmonic Distortion (THD) <=10%
- Beam Angle 120°
- Ambient Temperature & Humidity 40°C to +60°C & 10% to 90%
- Protection Over Voltage Protection , Under Voltage Protection, Over Load Protection Surge Protection 6 KV and Over Temperature Protection.
- SDCM 1-3 Steps
High storage
shop halls or workshop
Hangers
| Power (W) | Luminous Flux (lm) | Efficacy (lm/W) | CCT (K) | Power Factor | Beam Angle |
|---|---|---|---|---|---|
| 100W | >13000Lm | >130Lm/w | 5000K - 6500K | 0.97 | 120° |
| 150W | >19500Lm | >130Lm/w | 5000K - 6500K | 0.97 | 120° |
| 200W | >26000Lm | >130Lm/w | 5000K - 6500K | 0.97 | 120° |
| 250W | >32500Lm | >130Lm/w | 5000K - 6500K | 0.97 | 120° |

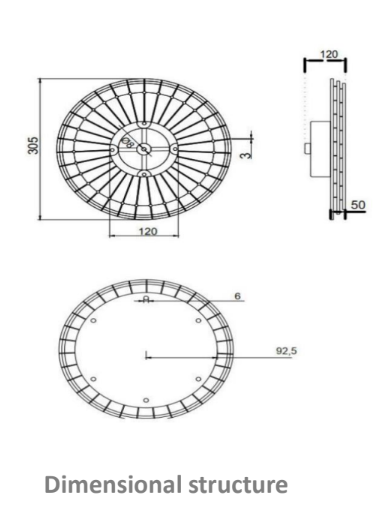

| Dim(mm) | H (mm) | Weight (KG) |
|---|---|---|
| 305 | 120 | 3.2 |
Ideal For
High storage
shop halls or workshop
Hangers
