LiTE-PRO

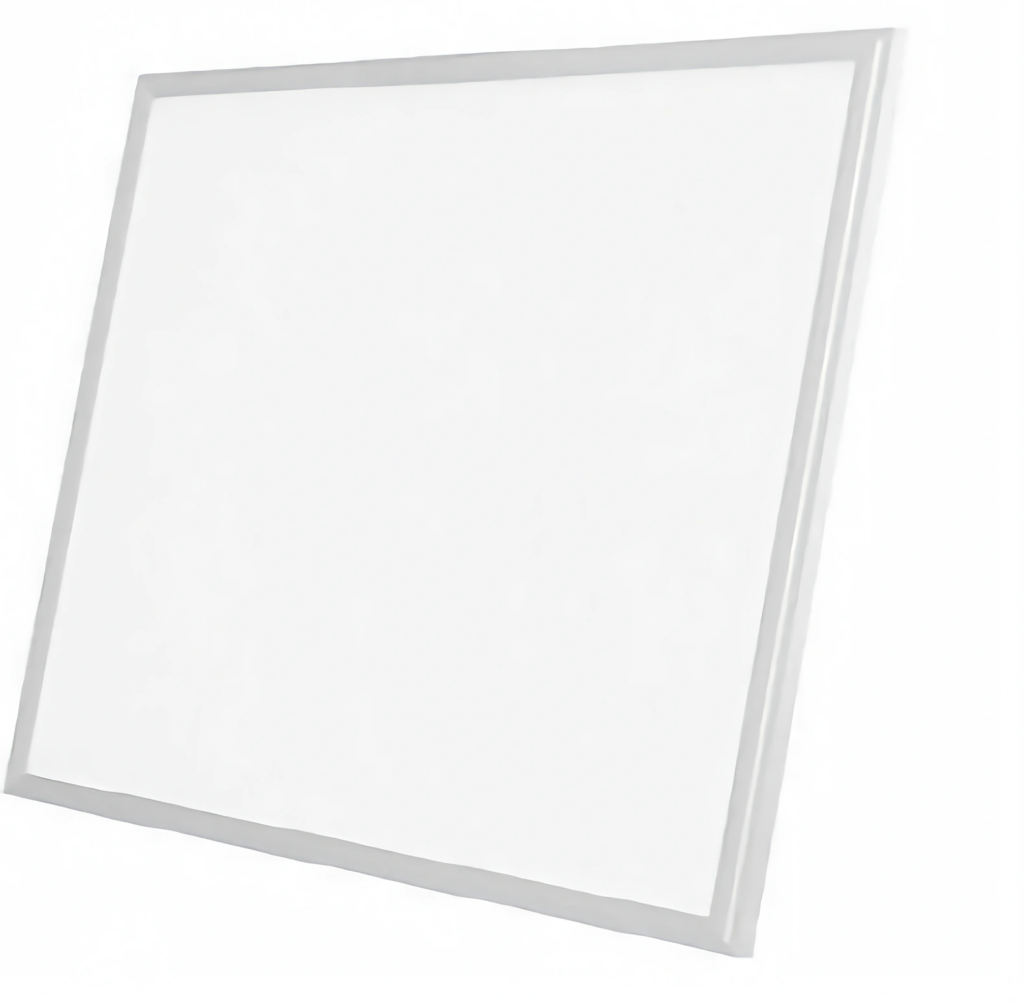

LED SLIM PANELW60L60
Recessed panel with Flat frame.
Homogeneous illumination for high visual comfort ,
Ideal for general lighting application in work-places,
and educational facilities
220-240V / 50/60Hz
30,000hrs 50,000hrs
3 / 5
IP20 / IP54
Product Overview
Recessed panel with Flat frame.
Homogeneous illumination for high visual comfort ,
Ideal for general lighting application in work-places,
and educational facilities
Surface Mounted
Directional Lighting
Seamless Integration
Backcover is made of chemically treated anti - rust sheet metal Aluminum frame in an attractive streamlined design and is electrostatic powder painted Opal diffuser with high light transmittance providing property and PMMA, LGP Light Source LED Osram Driver Philips / Lifud / Vossloh - Shwabe
Hospital
Banks
Shopping centers
Offices
| Power | Luminaire Luminous | Efficiency | Color Temperature | Power Factor | Beam Angle | Code osram /lifud |
|---|---|---|---|---|---|---|
| 40W | 4800Lm | 120Lm/w | 4000K 6500K | 0.95 | 110° | PNL-40Co0l-SQ-0S PNL-40DAY-SQ-0S |
| 48W | 5760Lm | 120Lm/w | 4000K 6500K | 0.95 | 110° | PNL-48Co0l-SQ-0S PNL-48DAY-SQ-0S |
| W(mm) | L(mm) | H(mm) | Cut-out(mm) | Weight(KG) |
|---|---|---|---|---|
| 600 | 600 | 10 | 595x595 | 12 |
Ideal For
Hospital
Banks
Shopping centers
Offices
