High ingress protection and high impact protection rating.

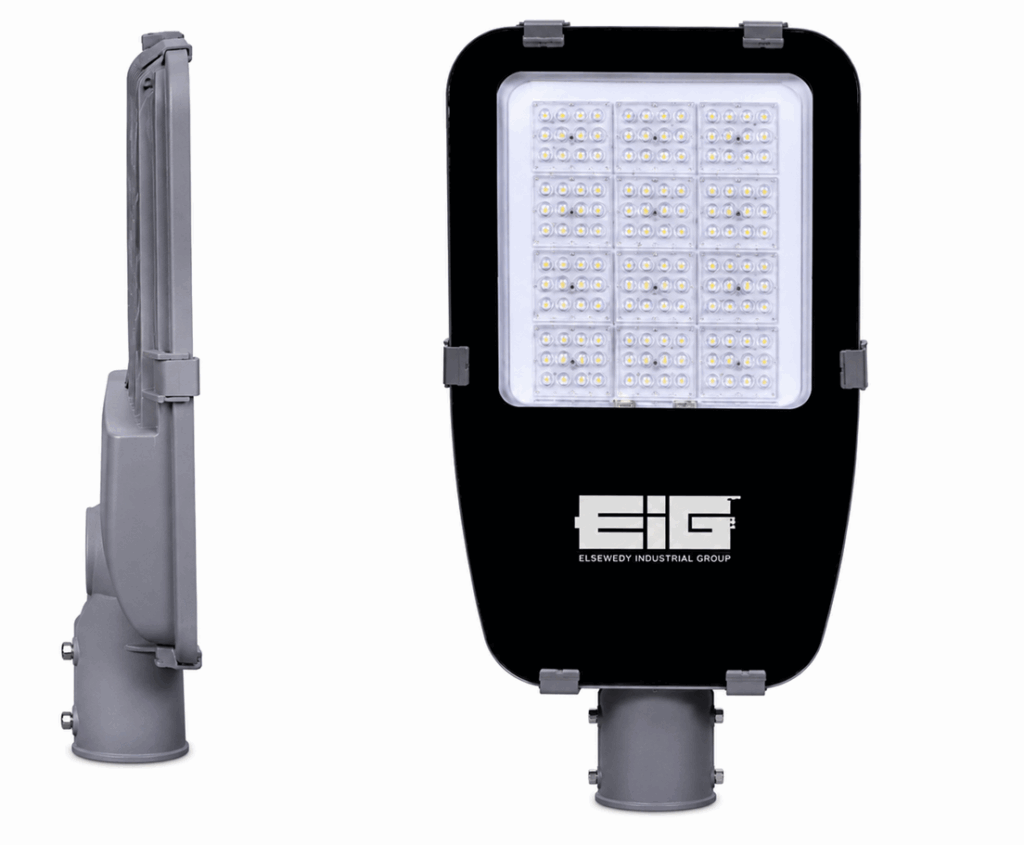

Street Luminaire
High-Duty Street lighting. Easy Mounting and Cabling. Easy Access to PCB and Driver Area, Ideal for general lighting application in Streets, Urban and Highways.
220-240V
3
3 / 5
IP66
Product Overview
SDCM: 1-3 steps
Ambient Temperature & Humidity: -5°C to 50°C
Beam Angle: 120° x 60°
Driver Efficiency: 90%
*You can manufacture the lighting pole with custom height
as you want.
and Cabling. Easy Access to PCB and Driver Area,
Directional Lighting
Seamless Integration
Highways
Urban and street areas
Bridges
| Power (W) | Luminous Flux (lm) | Efficiency | Color Temperature | Power Factor | Beam Angle |
|---|---|---|---|---|---|
| 50W | >6000Lm | >120Lm/w | 3000K:6500K | 0.98 | 120° |
| 70W | >8400Lm | >120Lm/w | 3000K:6500K | 0.98 | 120° |
| 100W | >12000Lm | >120Lm/w | 3000K:6500K | 0.98 | 120° |
| 150W | >18000Lm | >120Lm/w | 3000K:6500K | 0.98 | 120° |
| 200W | >24000Lm | >120Lm/w | 3000K:6500K | 0.98 | 120° |
| 250W | >30000Lm | >120Lm/w | 3000K:6500K | 0.98 | 120° |

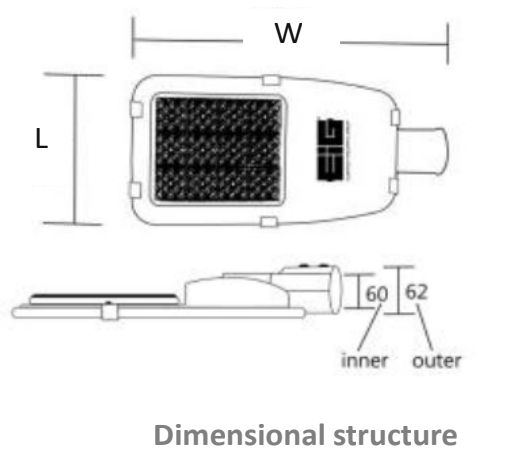

| Power (W) | W (mm) | L (mm) | H (mm) | Weight (KG) |
|---|---|---|---|---|
| 50W | 208 | 478 | 62 | 2.535 |
| 70W-100W | 258 | 541 | 62 | 3.3 |
| 150W | 284 | 663 | 62 | 4.2 |
| 200W-250W | 302 | 718 | 62 | 6.76 |
Ideal For
Highways
Urban and street areas
Bridges
