Ultra LED
Waterproof
IP65 waterproof luminaire that can be surface-mounted or
suspended. easy-to-use and high-quality. With its slim and
stylish design, luminaires. It’s provides better wide-beam
light distribution for straightforward and effective lighting.
A reliable, durable, and highly efficient solution for
commercial and industrial applications.
Applications
- Parking Garages
- Warehouses
- Manufacturing
- General Lighting
Features & Benefits
- Long lifetime and high efficiency. Warehouses
- Faster lock opening, tool-less electrical connections for easy and flexible installation.
- Saves on energy and maintenance costs
Product details
. Driver included: Yes
. Color rendering index (CRI): >80
. Rated Input voltage: 220-240, 50_60 Hz
. Power Factor: >0.97
. Mech. impact protection code IK08
. Ingress protection code IP65
. Luminous flux tolerance: +/-10%
. Ambient temperature range: -20 to +40 °C
. Storage temperature range: -20 to +60 °C
. SDCM: ≤5
. Beam angle:120 °
. Output Safety Level: Class I
. Environmental: CE, ROHS , REACH
Product Description
- Body: Injection molded polycarbonate with high impact resistance.
- Housing Color: Gray.
- Diffuser: PC cover with high light transmittance providing property.
- Clips: Stainless steel supplied as standard for added safety .
- Gland: PG13.5.
- Light Source: JR-2835 – LED Osram .
- Luminous efficacy for LED module: 160 Lm/W – 183 Lm/W .
- Luminaires efficacy for LED module: >130lm/W.
- Driver: Philips / Osram / Vossloh-Schwabe.
Ultra LED
Waterproof
Technical Specifications
LDT Polar Distribution Diagram
Photometric Curves

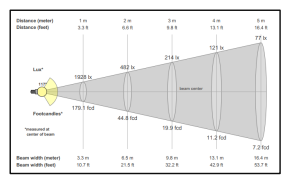

Lux-Distance Curve
Beam Details
Dimensions
Logistical Data
Accessories Included

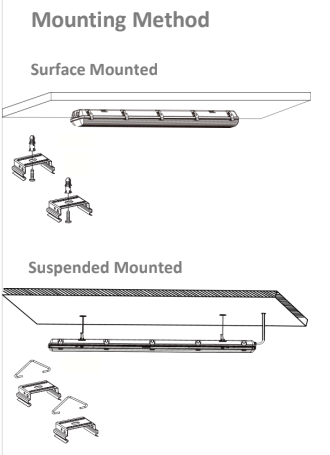

Mounting Method
Dimensional structure

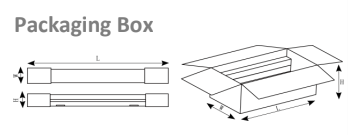

Packaging Box
