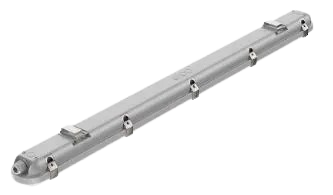

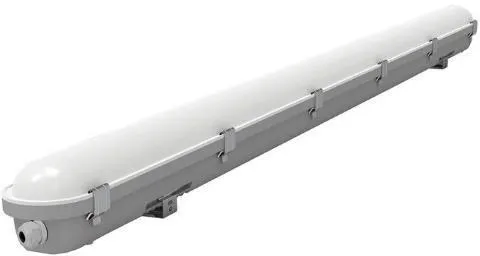

Ultra LED Waterproof

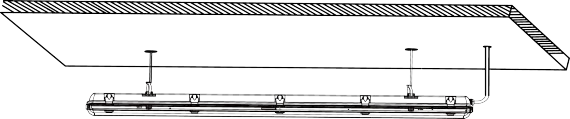

IP65 waterproof luminaire that can be surface-mounted or
suspended. easy-to-use and high-quality. With its slim and
stylish design, luminaires. It’s provides better wide-beam
light distribution for straightforward and effective lighting.
A reliable, durable, and highly efficient solution for
commercial and industrial applications.
Product Description
. Body: Injection molded polycarbonate with high impact resistance.
. Housing Color: Gray.
. Diffuser: PC cover with high light transmittance providing property.
. Clips: Stainless steel supplied as standard for added safety .
. Gland: PG13.5.
. Light Source: JR-2835 – LED Osram .
. Luminous efficacy for LED module: 160 Lm/W – 183 Lm/W .
. Luminaires efficacy for LED module: >130lm/W.
. Driver: Philips / Osram / Vossloh-Schwabe.
Product Details
. Driver included: Yes
. Color rendering index (CRI): >80
. Rated Input voltage: 220-240, 50_60 Hz
. Power Factor: >0.97
. Mech. impact protection code IK08
. Ingress protection code IP65
. Luminous flux tolerance: +/-10%
. Ambient temperature range: -20 to +40 °C
. Storage temperature range: -20 to +60 °C
. SDCM: ≤5
. Beam angle:120 °
. Output Safety Level: Class I
. Environmental: CE, ROHS , REACH
Applications
- Warehouses
- Parking garages
- General lightning
. General Lighting
Features and Benefits
. Long lifetime and high efficiency. Warehouses. Faster lock opening, tool-less electrical connections for easy and flexible installation.
. Saves on energy and maintenance costs

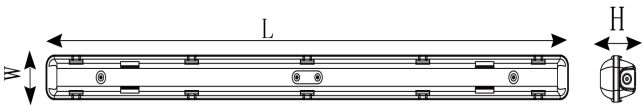

Technical Specifications

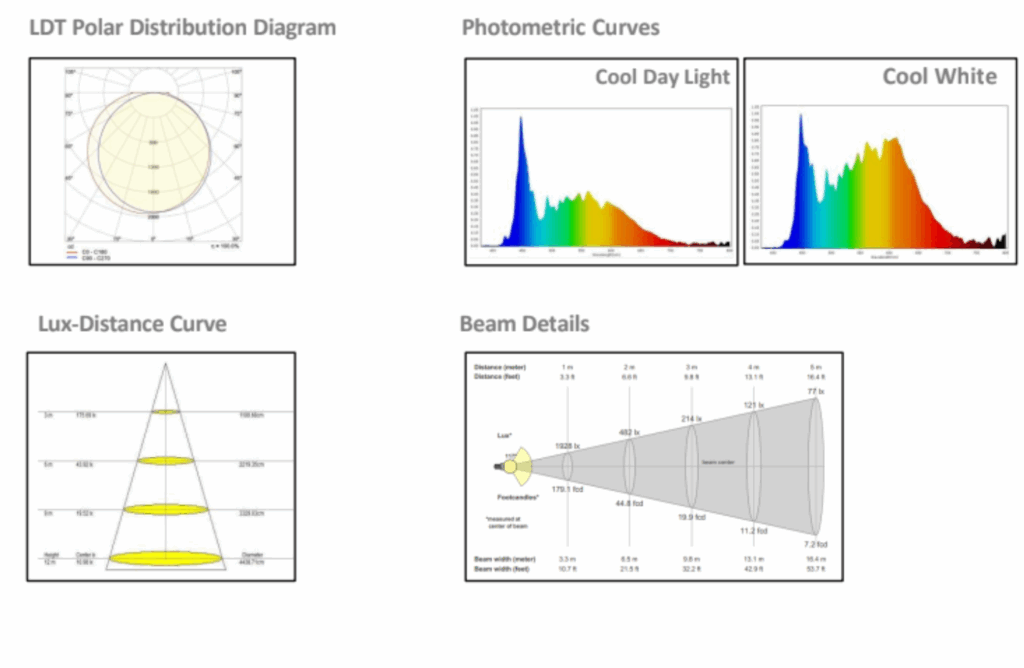

Photometric Curves
